DS-2CE16K0T-LPFS
DS-2CE16K0T-LPFS

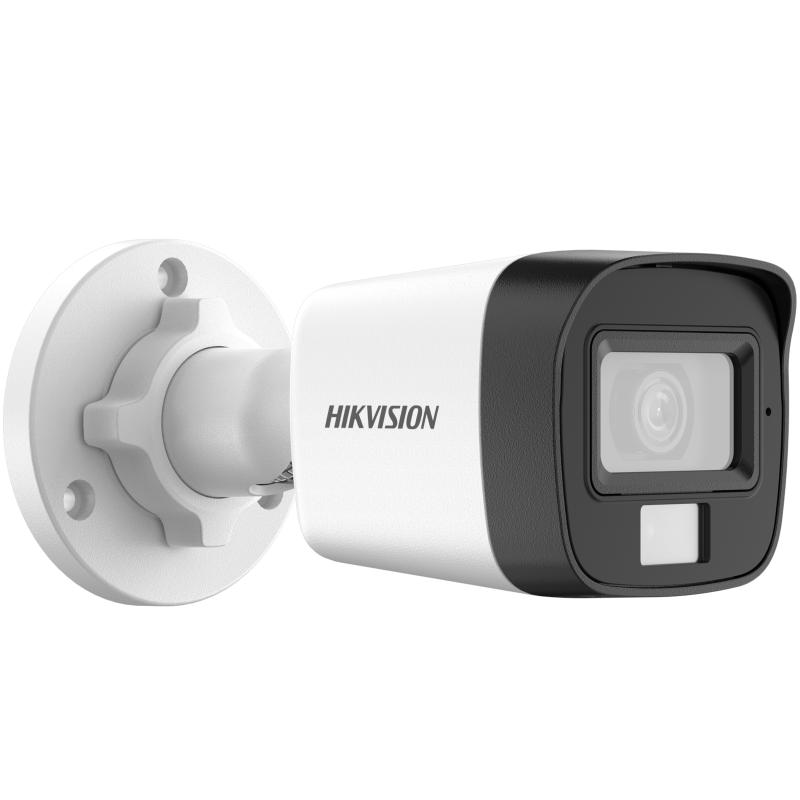

3K Smart Hybrid Light Audio Fixed Mini Bullet Camera
- High quality imaging with 3K, 2960 × 1665 resolution
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 25 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- Water and dust resistant (IP67)
- High quality audio with audio over coaxial cable, built-in mic
- Smart-Hybrid light, optimize your security with flexible lighting options
- Kamera
- Image Sensor3K CMOS
- Max. Resolution2960 (H) × 1665 (V)
- Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 104.9°, vertical FOV: 67.3°, diagonal FOV: 129.8°
3.6 mm, horizontal FOV: 81.3°, vertical FOV: 50.7°, diagonal FOV: 102.4°
- Lens MountM12
- Illuminator
- Supplement Light TypeWhite Light;IR
- Supplement Light Range
IR : Up to 25 m
White Light : Up to 20 m
- Image
- Image SettingsBrightness, Sharpness, Smart IR
- Frame Rate
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementDWDR/BLC/HLC/Global
- White BalanceAuto/Manual
- AGCYes
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- Built-in MicrophoneYes
- General
- MaterialPlastic
- Dimension138.8 mm × Ø70 mm (5.47" × Ø2.76")
- WeightApprox. 160 g (0.35 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 2.9 W
- Approval
- ProtectionIP67
| Kasa Tipi | : | Bullet |
| Çözünürlük | : | 5 Megapiksel |
| Lens | : | 2,8 mm |
