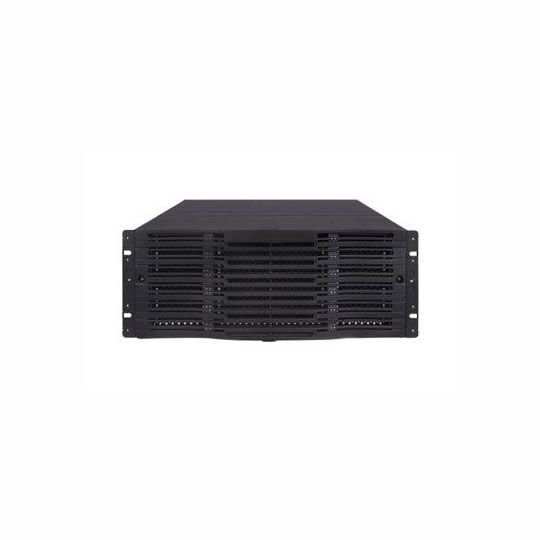

NVR624-512-2
NVR624-512-2
NVR624-512-2 Uzman Bayi Satış Ekibi, Profesyonel Teknik Destek Hizmeti ile DESS Elektronik'te en iyi fiyat garantisi ile...
NVR624-512-2
Video
IP Video Input
512-ch 2Mbps
User Management
Maximum number of users:256
Video Retrieval & Playback
Video retrieval indexed by channel and time
Start, Pause, Stop, Drag, Single-frame forward, Multi-speed forward(0.25/0.5/1/2/4/8/16), Multi-speed back play(-1/-2/-4/-8/-16)
Playback stream via UDP,TCP
Storage
HDD Interface
24 SATA interfaces
HDD of System
Up to 168 (With 6 24-HDD disk enclosures)
Installation
Hot-swappable through the front panel
Capacity
2TB,3TB,4TB
Storage
JBOD and RAID0,1, 10,5,6,50
Hot spare: dedicated hot-spare disk, global hot-spare disk
Direct-to-iSCSI data block storage;
Manual, scheduled, alarm-triggered recording
Video resource management
Storage controller
Dual-core processor
Memory
8 GB, up to 16GB
External Interface
Network Interface
2 10/100/1000Mbps Ethernet interface
4 10/100/1000Mbps Ethernet interface (Optional)
2 10GE SFP+ (Optional)
USB Interface
2 USB2.0
Serial Interface
1 RS-232 , 3 RS-485,1 RS-232/RS-485
Alarm I/O
8-ch/4-ch
Management
1 10/100Mbps Ethernet interface
Expansion
2 24Gbps Mini SAS (Optional)
General
Power Supply
2 Hot-swappable redundant power supplies:100V～127V/200V～240V AC
(the second power Optional)
Fan
2 Redundant hot-spare fans
Consumption
Controller enclosure <400W (fully loaded)
Disk enclosure <350W (fully loaded)
Working Temperature
0°C~40°C / 32°F ~ 104°F
20%~80% RH (non-condensing)
Dimensions (H×W×D)
Controller enclosure: 481.6 × 589.0 × 175.0 mm (19.0” × 23.2” × 6.9”)
Disk enclosure: 481.6 × 589.0 × 175.0 mm (19.0” × 23.2” × 6.9”)
Note：for standard cabinet with 800mm depth or above
Weight
Controller enclosure
Without HDD：<25.5kg; Fully loaded：<43kg
Disk enclosure
Without HDD：<19.5kg; Fully loaded：<37kg
Battery
2 Hot-swappable redundant batteries (Optional)
LED Indicator
1 set, status code for temperature and device status
|
|
NVR624-512-2 |
|
Video |
|
|
IP Video Input |
512-ch 2Mbps |
|
User Management |
Maximum number of users:256 |
|
Video Retrieval & Playback |
Video retrieval indexed by channel and time Start, Pause, Stop, Drag, Single-frame forward, Multi-speed forward(0.25/0.5/1/2/4/8/16), Multi-speed back play(-1/-2/-4/-8/-16) Playback stream via UDP,TCP |
|
Storage |
|
|
HDD Interface |
24 SATA interfaces |
|
HDD of System |
Up to 168 (With 6 24-HDD disk enclosures) |
|
Installation |
Hot-swappable through the front panel |
|
Capacity |
2TB,3TB,4TB |
|
Storage |
JBOD and RAID0,1, 10,5,6,50 Hot spare: dedicated hot-spare disk, global hot-spare disk Direct-to-iSCSI data block storage; Manual, scheduled, alarm-triggered recording Video resource management |
|
Storage controller |
Dual-core processor |
|
Memory |
8 GB, up to 16GB |
|
External Interface |
|
|
Network Interface |
2 10/100/1000Mbps Ethernet interface 4 10/100/1000Mbps Ethernet interface (Optional) 2 10GE SFP+ (Optional) |
|
USB Interface |
2 USB2.0 |
|
Serial Interface |
1 RS-232 , 3 RS-485,1 RS-232/RS-485 |
|
Alarm I/O |
8-ch/4-ch |
|
Management |
1 10/100Mbps Ethernet interface |
|
Expansion |
2 24Gbps Mini SAS (Optional) |
|
General |
|
|
Power Supply |
2 Hot-swappable redundant power supplies:100V～127V/200V～240V AC (the second power Optional) |
|
Fan |
2 Redundant hot-spare fans |
|
Consumption |
Controller enclosure <400W (fully loaded) Disk enclosure <350W (fully loaded) |
|
Working Temperature |
0°C~40°C / 32°F ~ 104°F 20%~80% RH (non-condensing) |
|
Dimensions (H×W×D) |
Controller enclosure: 481.6 × 589.0 × 175.0 mm (19.0” × 23.2” × 6.9”) Disk enclosure: 481.6 × 589.0 × 175.0 mm (19.0” × 23.2” × 6.9”) Note：for standard cabinet with 800mm depth or above |
|
Weight |
Controller enclosure Without HDD：<25.5kg; Fully loaded：<43kg Disk enclosure Without HDD：<19.5kg; Fully loaded：<37kg |
|
Battery |
2 Hot-swappable redundant batteries (Optional) |
|
LED Indicator |
1 set, status code for temperature and device status |
| Kanal Sayısı | : | 512 Kanal |
