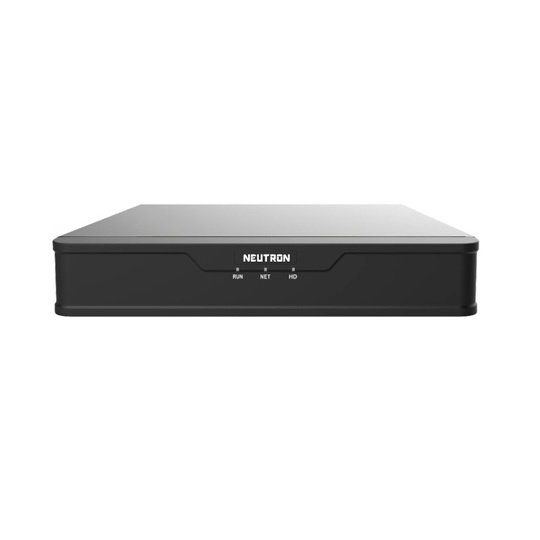

NVR301-08S3-P8
NVR301-08S3-P8
| Model | NVR301-04S3-P4 | NVR301-08S3-P8 |
| Video/Audio Input | ||
| IP Video Input | 4-ch | 8-ch |
| Network | ||
| Incoming Bandwidth | 64Mbps | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 4-ch | 8-ch |
| Corridor Mode Screen | 3/4 | 3/4/5/7/9 |
| Decoding | ||
| Decoding format | Ultra265/H.265/H.264 | |
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
| Hard Disk | ||
| SATA | 1 SATA interfaces | |
| Capacity | Up to 6TB for each disk | |
| External Interface | ||
| Network Interface | 1 RJ-45 10M/100Mself-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| PoE | ||
| Interface | 4 RJ-45 10M/100Mself-adaptive Ethernet Interface | 8 RJ-45 10M/100Mself-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
Max 30W for single port Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af | |
| General | ||
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
52V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |
| Dimensions (W×D×H) | 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8") | |
| Weight (without HDD) | ≤1.1kg (2.43lb) | |
| Kanal Sayısı | : | 8 Kanal |
