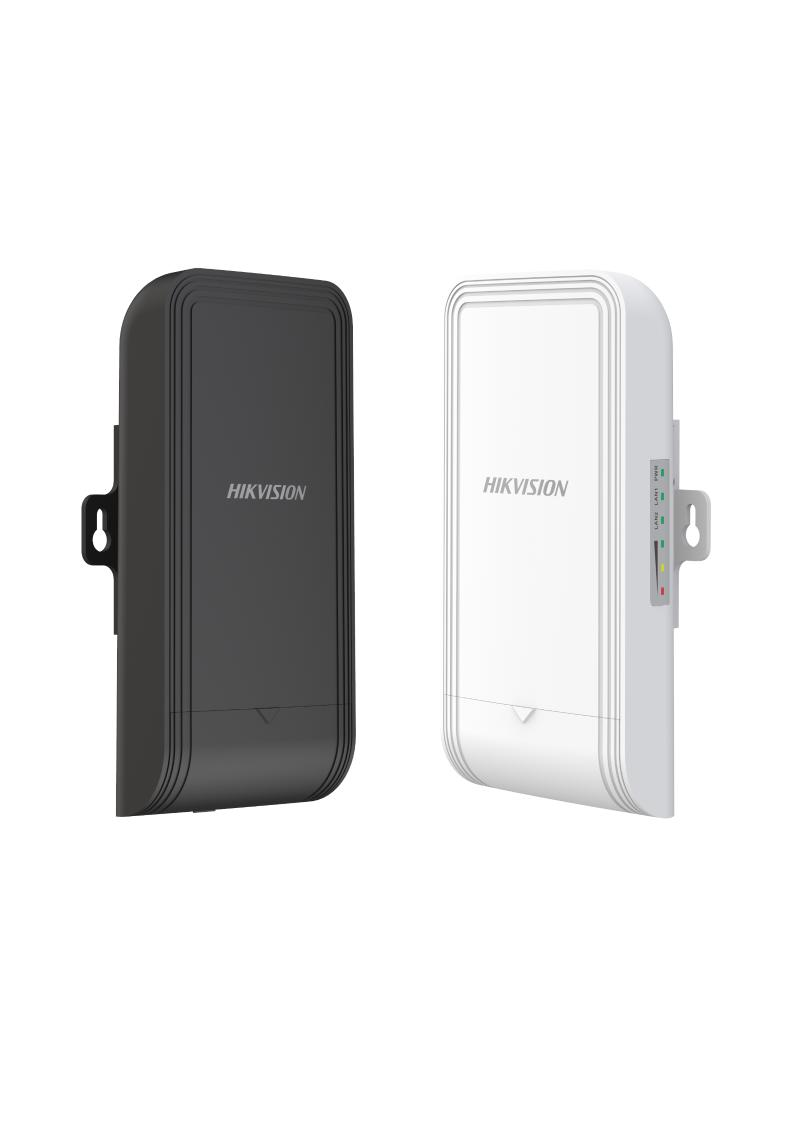

DS-3WF500T-EI-2N/P 2.4Ghz 300Mbps 500 M Wireless Bridge Kit
Kategori
Marka
Stok Kodu
.DS-3WF500T-EI-2N/P
Garanti Süresi
24 Ay
DS-3WF500T-EI-2N/P 2.4Ghz 300Mbps 500 M Wireless Bridge Kit
2.4Ghz 300 Mbps 500m Elevator Wireless Bridge
- Up to 500 m wireless transmission distance
- 300 Mbps 802.11n wireless bridge
- Built-in 7 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Standard PoE Input & Output
- Plug and Play
- General
- Product Dimensions (W × H × D)90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
- Package Dimensions (W × H × D)256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
- Net Weight0.26 kg (0.57 lb) per device
- Gross Weight1.1 kg (2.43 lb)
- Packing ListWireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
- Packing MethodPacking in pairs
- Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 80 °C (-40 °F to 176 °F)
- Storage Humidity5% to 95% (no condensation)
- Installation ModePole Mounting
- Ingress ProtectionIP55
- Power Consumption2.43 W for typical (1-ch 2MP IPC), Max. 3.4 W
- Wireless Parameter
- Max. Transmission Rate of Air Interface≤ 300 Mbps
- Wireless StandardIEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
- Working Frequency Band2400 MHz ~ 2483.5 MHz
- Antenna Gain7 dBi
- Antenna Angle(H) Beamwidth [3 dB] 60° (V) Beamwidth [3 dB] 50°
- Transmitting Power22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.)
- Receiving Sensitivity-87±2 dBm @HT40 MCS0
- Throughput RatePTP: ,80 Mbps/0.2 KM(HT40),40 Mbps/0.5 KM(HT40)
- PoE Power Supply
- PoE PortAP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
- PoE Power Budget10 W
- PoE Distance100 m
- Hardware Parameter
- Network Interface2 × 10/100 Mbps RJ45 ports
- LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
- SIFIRLAHardware resetting button
- Power Supply48V PoE;Check the physical interface image below for more details.
- Software Function
- Application FunctionIFM,IPM
- Channel Width10/20/40 MHz
- Channel SelectionAuto/manual selection
- Security ModeWPA2-PSK
- Security MechanismWireless network name hidden
- Network ProtocolNTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging)
- Management MethodHCP,Web,HPP,iVMS-4200
- System LogSyslog,Control center information
- UpgradeWeb,iVMS-4200,HCP,HPP
- HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning
8. PoE output management
- Approval
- EMCCE-EMC(EN 55032, EN 50130-4, EN 55035, EN IEC 61000-3-2, EN 61000-3-3)
- SafetyCB (IEC 62368-1),CE-LVD (EN 62368-1)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- RadioEN 301 489-17,EN 301 489-1, EN 61000-3-3, EN IEC 61000-3-2, EN 300 328, EN IEC 62311
