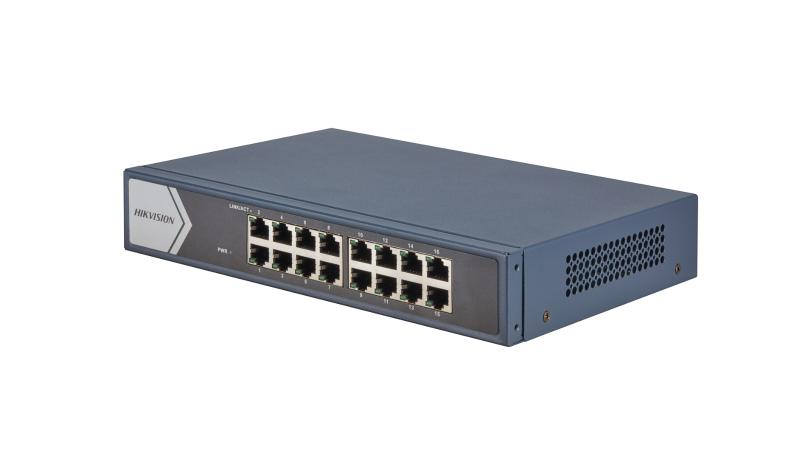

DS-3E0516-E(B)

• 16 x 1000M Ethernet ports
• Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x
• 1000M network access
• Wire-speed forwarding and non-blocking design
• Store-and-forward switching
• Solid high-strength metal shell
• Fan-free design with high reliability

• General
• ShellMetal material, fan-free design
• Net Weight1.20 kg (2.60 lb)
• Gross Weight2.07 kg (4.56 lb)
• Dimensions (W × H × D)257.0 mm × 44.5 mm × 175.8 mm (10.1'' × 1.8'' × 6.9'')
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40˚C to 85˚C (–40˚F to 185˚F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply220 VAC, 50/60 Hz, Max. 0.3 A
• Installation ModeMetal material, fan-free design
• Max. Power Consumption/
• Power Consumption In Idle/
• Surge Protection/

• Network Parameters
• Limanlar16 × Gigabit RJ45 port
• MAC Address Table8 K
• Switching Capacity32 Gbps
• Packet Forwarding Rate23.81 Mpps
• Internal Cache4.10 Mbits

• PoE Power Supply
• PoE Standard/
• PoE Power Pin/
• PoE Port/
• Max. Port Power/
• PoE Power Budget/

• Dialing Function
• Long Range/
• Port Isolation/
• PoE Watchdog/

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
