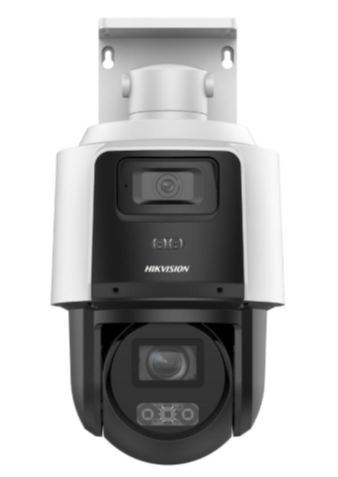

DS-2SE3C404MWG-E/14 4MP+4MP TandemVu 4X POE PTZ Network Kamera

• Captures a large area and great details at the same time
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• Secures an expansive area with 4× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Supports 12V DC & PoE+
• Support Human and Vehicle Detection

• Kamera
• Image Sensor[Bullet channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Min. Illumination

  [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON), 0 Lux with IR;

  [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed1 s to 1/30,000 s
• Slow Shutteryes
• Day & NightICR
• Zoom[PTZ channel] 4 × optical, 16 × digital
• Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

• Lens
• Focusauto,manual,semi-auto
• Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical
• Zoom Speed[PTZ channel]: approx. 3.3 s
• FOV[Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 136.4°, [PTZ channel] horizontal field of view: 98° to 34.2°, vertical field of view: 52° to 19.2°, diagonal field of view: 111° to 39°
• Aperture[Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9

• Illuminator
• Supplement Light Type[Bullet channel] Hybrid (IR and White Light), [PTZ channel] IR
• Smart Supplement LightYes
• Supplement Light Range

  [PTZ channel]: IR Distance: up to 40 m;

  [Bullet channel]: IR Distance: up to 30 m; White Light Distance: 30 m

• PTZ
• Movement Range (Pan)0° to 350°
• Movement Range (Tilt)[Bullet channel] 7° to 17° (manually adjust), [PTZ channel] -5° to 90°
• Pan Speedpan speed: configurable from 0.1° to 30°/s; preset speed: 30°/s
• Tilt Speedtilt speed: configurable from 0.1° to 30°/s, preset speed 30°/s
• Proportional Panyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Power-off Memoryyes
• Park Actionpreset,patrol scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskdome reboot,preset,patrol scan,dome adjust,aux output

• Video
• Region of Interest (ROI)1 fixed regions for main stream
• Main Stream

  [Bullet channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  [PTZ channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  [Bullet channel]:

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

  [PTZ channel]:

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Third Stream

  [Bullet channel]:

  50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)

  60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)

  [PTZ channel]:

  50 Hz: 25 fps (1280 × 720，640 × 480，640 × 360)

  60 Hz: 30 fps (1280 × 720，640 × 480，640 × 360)

• Video CompressionH.265,H.264,MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 Typemain profile,baseline profile,high profile
• H.265 Typemain profile
• Scalable Video Coding (SVC)yes

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps; AAC : 16 kbps, 32 kbps, 64 kbps; MP3: 8 kbps, 16 kbps, 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps
• Audio Sampling RateMP2L2: 16 kHz,AAC-LC: 16 kHz,PCM: 8 kHz, 16 kHz,MP3: 8 kHz, 16 kHz
• Environment Noise Filteringyes

• Network
• APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Network StorageNAS (NFS, SMB/ CIFS),ANR, ANR
• ProtocolsTCP/IP,SMTP,RTSP,FTP,WebSockets,IGMP,WebSocket,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
• Simultaneous Live View20
• User/Host32
• Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
• ClientiVMS-4200,Hik-Connect
• Web BrowserIE8+, Chrome31 to 44, Firefox 30 to 51, Safari8.0+

• Image
• Image Settingssharpness, saturation, brightness, contrast
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• DefogDigital defog
• Day/Night Switchday, night, auto, scheduled-switch
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask[Bullet channel] 24 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks
• Regional Focus[Bullet channel] No, [PTZ channel] Yes
• Regional Exposure[Bullet channel] No, [PTZ channel] Yes
• Image Parameters SwitchYes

• Interface
• Built-in Microphone1 built-in microphone
• Built-in Speaker1 built-in speaker
• Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
• SIFIRLAyes

• Event
• Basic EventMotion detection,video tampering alarm,exception,alarm input and output
• Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
• Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

• General
• General Functionmirror,watermark,IP address filter,password protection
• Power12 VDC, max. 13.5 W,PoE+
• Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• MaterialPC
• Dimension311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14")
• Approx. 1.37 kg (3.02 lb.)

• Approval
• ProtectionIP66 Standard, Surge Protection and Voltage Transient Protection
