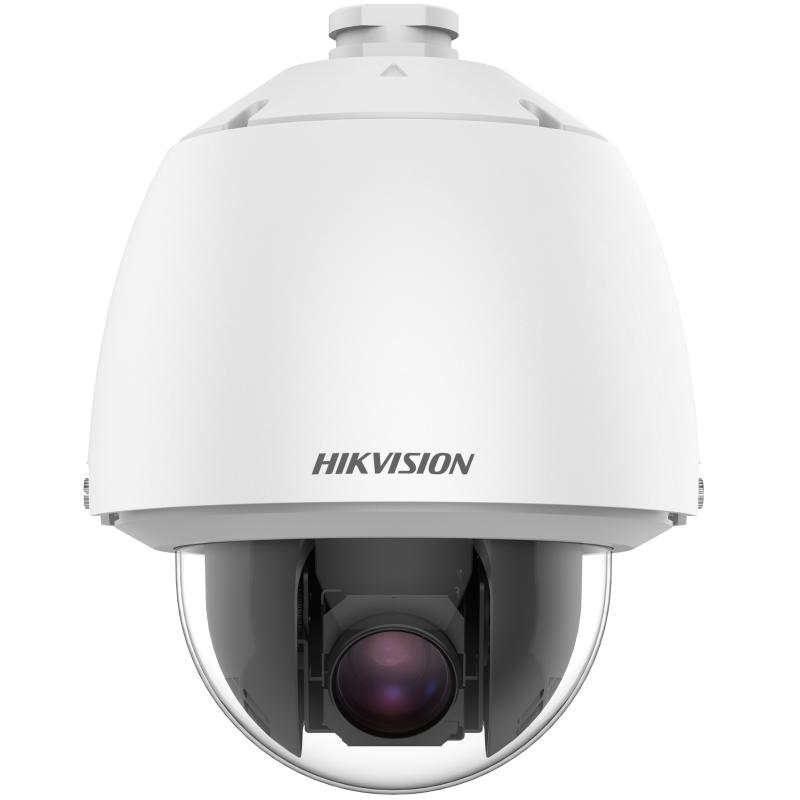

DS-2DE5232W-AE(O-STD)(T5) 2 MP 32x DarkFighter PTZ Kamera
DS-2DE5232W-AE(O-STD)(T5) 2 MP 32x DarkFighter PTZ Kamera
2 MP 32X Powered by DarkFighter Network Speed Dome
- 1/2.8" Progressive Scan CMOS
- High quality imaging with 2 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 32× optical zoom and 16× digital zoom provide close up views over expansive areas
- WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- 24 VAC & PoE (802.3at)
- Efficient H.265+/H.265 compression technology
- Water and dust resistant (IP66) and vandal resistant (IK10)
- Kamera
- Image Sensor1/2.8″ Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
- Shutter Speed1 s to 1/30,000 s
- Day & NightIR cut filter
- Zoom32x optional, 16x digital
- Slow ShutterYes
- Lens
- Focal Length4.8 mm to 153.6 mm
- FOV
Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)
- FocusAuto, semi-auto, manual
- ApertureMax. F1.6
- Zoom SpeedApprox. 4.8 s
- PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-5° to 90° (auto flip)
- Pan SpeedPan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s
- Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
- Proportional PanYes
- Presets300
- Preset FreezingYes
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- 3D PositioningYes
- PTZ Status DisplayYes
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-off MemoryYes
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline profile/Main profile/High profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)8 fixed regions for each stream
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Simultaneous Live ViewUp to 20 channels
- APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/HostUp to 32 users; 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserIE11, Chrome57+, Firefox52+, Safari11+
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR＞52 dB
- DefogDigital Defog
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
- Alarm2 inputs, 1 output
- SIFIRLAYes
- Event
- Basic EventMotion detection, video tampering alarm, exception, alarm input and output
- Smart Eventline crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Face CaptureYes
- General
- Power24 VAC, Max. 20 W; PoE (802.3at)
- DimensionØ 220 mm × 280 mm (Ø 8.66" × 11.02")
- Approx. 3.0 kg (6.61 lb.)
- MaterialMetal
- Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1: 2005); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge protection and voltage transient protection
| Kasa Tipi | : | PTZ |
| Çözünürlük | : | 2 Megapiksel |
| Optik Zoom | : | 32x |
