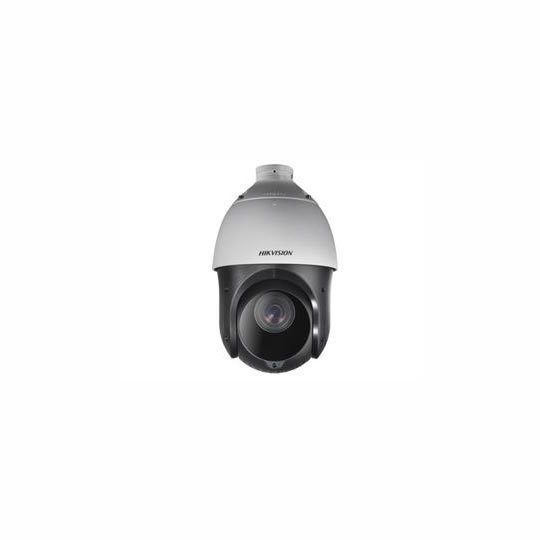

DS-2DE4425IW-DE (T5)
4MP 25x Network IR PTZ
Color: 0.005 Lux @(F1.6, AGC ON)
|
- Kamera
- Image Sensor1/2.8" progressive scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Slow Shutteryes
- Day & NightIR cut filter
- Zoom25x optical, 16x digital
- Lens
- FocusAuto, semi-auto, manual
- ApertureMax. F1.6
- Zoom SpeedApprox. 3.6 s
- Focal Length4.8 mm to 120 mm
- FOV
Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeIR Distance: up to 100 m
- PTZ
- Proportional PanYes
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-Off Memoryyes
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Video
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Region Of Interest (ROI)8 fixed regions for each stream
- Main Stream
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video Bit Rate32 kbps to 16384 kbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain profile
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users, 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- ClientiVMS-4200, HikCentral Pro, Hik-Connect
- Web BrowserChrome 57.0+, Firefox 52.0+, Safari 11+, IE11
- Image
- Image Parameters SwitchYes
- Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR> 52 dB
- DefogDigital defog
- Image StabilizationEIS
- Image EnhancementBLC, HLC, 3D DNR
- Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
- Regional FocusYes
- Regional ExposureYes
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Alarm1 input, 1 output
- Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
- SIFIRLAYes
- Event
- Basic EventMotion detection, video tampering alarm, exception, alarm input and output
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- General
- Power
12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;
PoE (802.3at)
- Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
- DemistYes
- MaterialADC12
- DimensionsØ 164.5 mm × 290 mm (Ø 6.48" × 11.42")
- WeightApprox. 2 kg (4.41 lb.)
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
