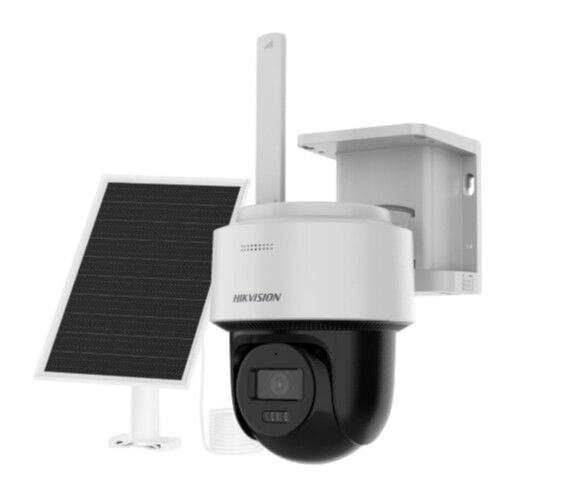

DS-2CFSP4/4G 4MP SOLAR 4G PT KAMERA
4MP 24/7 Solar 4G PT Camera
- Support AOV Mode：24/7 video recording
- 8 W solar panel and 9000 mAh battery
- Support 4G LTE data transmission
- Smart Hybrid Light: 30 m white light and IR
- Motion Detection 2.0: Support person and vehicle detection
- Built-in microphone and speaker, support two-way audio
- Water and dust resistant (IP66)
- Smart Tracking: PT Camera achieves person tracking with Motion Detection 2.0
- Kamera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 95.7°, vertical FOV 51.7°, diagonal FOV 113.7°
4 mm, horizontal FOV 79.6°, vertical FOV 43.2°, diagonal FOV 93.2°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.28
- PTZ
- Movement Range (Pan)0° to 340°
- Movement Range (Tilt)0° to 80°
- Pan SpeedUp to 20°/s
- Tilt SpeedUp to 25°/s
- DORI
- DORI
2.8 mm D: 63.9 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
4 mm D: 77.6 m, O:30.8 m, R: 15.5 m, I: 7.8 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 12.5 fps {2560 x 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
- Video Bit Rate32 Kbps to 8 Mbps
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Audio
- Audio CompressionG.711ulaw
- Audio Bit Rate64 Kbps(G.711ulaw）
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- Simultaneous Live ViewUp to 6 channels
- APIISAPI
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientHik-Connect
- Mobile Communication
- StandardLTE-FDD,LTE-TDD,UMTS
- Frequency
EU:LTE-FDD: B1/3/5/7/8/20/28
LA:LTE-FDD: B2/3/4/5/7/8/28/66
- Uplink and Downlink Data RateEU: Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps, IN: Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps, LA: Cat 1, uplink: 5.1 Mbps, downlink: 10.3Mbps, NA: Cat 4, uplink: 50 Mbps, downlink:150 Mbps, JP: Cat 4, uplink: 50 Mbps, downlink:150 Mbps
- SIM Card TypeNano SIM
- Image
- Image SettingsSaturation,brightness,contrast,sharpness,white balance
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Wide Dynamic Range (WDR)Digital WDR
- Interface
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone1 built-in microphone
- Built-in Speaker1 built-in speaker
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle))
- Linkagenotify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card
- General
- Power12 V, 0.75 A
- MaterialPlastic
- Dimension208 mm × 131 mm × 282.7 mm (8.2" × 7.0" × 11.1")
- Package Dimension386 mm × 201 mm × 225 mm (15.2" × 7.9" × 8.9")
- Approx. 850 g (1.9 lb.)
- With Package WeightApprox. 5400 g (11.9 lb.)
- General FunctionMirror,flash log
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
- Battery
- Battery TypeLithium
- Battery VoltageDC 6 V to DC 8.4 V
- Capacity9000 mAh (3.7 V)
- Max. Charging Voltage8.4 V
- Max. Output Voltage8.4 V
- Operating Temperature
Charging: 0 °C to 45 °C (32 °F to 113 °F)
Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
- Battery LifeMore than 800 cycles
- Approval
- RF
CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
*CE certification is only for the device sold in the European region.
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
| Kasa Tipi | : | Dome |
| Çözünürlük | : | 4 Megapiksel |
| Lens | : | 2,8 mm |
