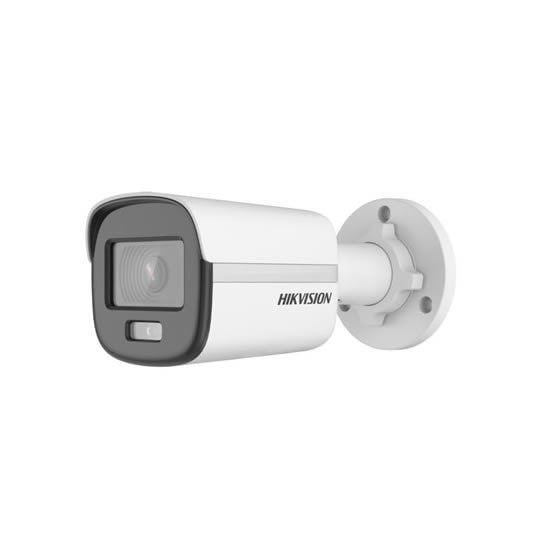

DS-2CE10DF0T-LPFS

2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• Up to 20 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°

  3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°

• Lens MountM12

• Illuminator
• Supplement Light Type

  IR,

  White Light

• Smart Supplement LightYes
• Supplement Light RangeIR: Up to 20 m,White Light: Up to 20 m

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Sharpness, Anti-banding, AGC
• Frame Rate

  TVI: 1080p @25 fps/30 fps

  CVI: 1080p @25 fps/30 fps

  AHD: 1080p @25 fps/30 fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Noise Reduction3D DNR/2D DNR
• Image Enhancement

  DWDR,

  BLC,

  HLC,

  Global

• White BalanceAuto, Manual

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Built-In MicrophoneYes

• General
• MaterialPlastic
• Power12 VDC ± 25%, max. 2.9 W,*You are recommended to use one power adapter to supply the power for one camera.
• Dimension161.1 mm × 68.4 mm × 65.2 mm (6.34" × 2.69" × 2.57")
• WeightApprox. 235 g (0.52 lb.)
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish

• Approval
• ProtectionIP67
