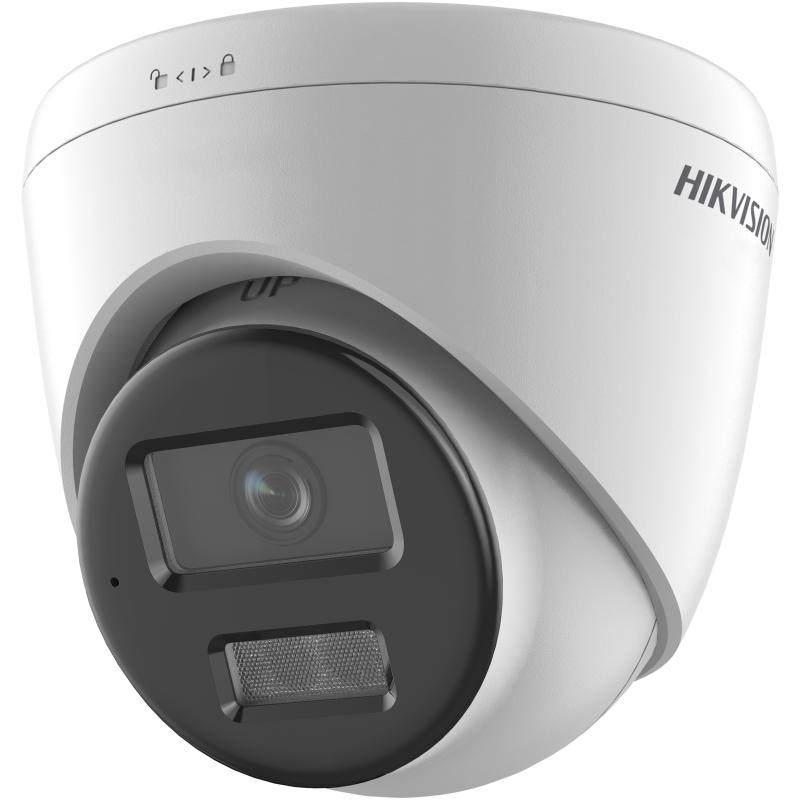

DS-2CD1321G2-LIUF 2 MP Smart Hybrid Light Fixed Turret Network Kamera

• High quality imaging with 2 MP resolution
• Support Human Detection
• Efficient H.265+ compression technology
• Smart Hybrid Light: advanced technology with long range coverage
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

• Kamera
• Image Sensor1/2.9" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°

  4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°

• Lens MountM12
• Iris TypeFixed
• ApertureF2.2

• DORI
• DORI

  2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

  4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m

• Illuminator
• Supplement Light TypeIR,White Light
• Supplement Light Range

  IR: up to 20 m

  White Light: up to 15 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (640 × 480, 640 × 360)

  60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR

• Audio
• Audio TypeMono sound
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz
• Audio CompressionG.711ulaw/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)

• Network
• SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile T),ISAPI,SDK
• ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Image
• Wide Dynamic Range (WDR)Digital WDR
• SNR≥ 52 dB
• Privacy Mask1 programmable polygon privacy mask
• Day/Night SwitchDay,Night,Auto,Schedule
• Image EnhancementBLC,HLC,3D DNR
• Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  NA

• Built-in MicrophoneYes,1 built-in microphone
• Reset Key

  NA

• Event
• Basic EventMotion detection (support alarm triggering by specified target type (human)), exception
• LinkageNotify surveillance center, send email, trigger capture

• General
• Power

  12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 6.5 W

• MaterialPlastic
• DimensionØ109.9 mm × 103.6 mm (Ø4.3" × 4.1")
• Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• Approx. 300 g (0.7 lb.)
• With Package WeightApprox. 460 g (1.0 lb.)
• Storage Conditions-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionHeartbeat,mirror,password protection,password reset via email

• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014

• Safety

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
