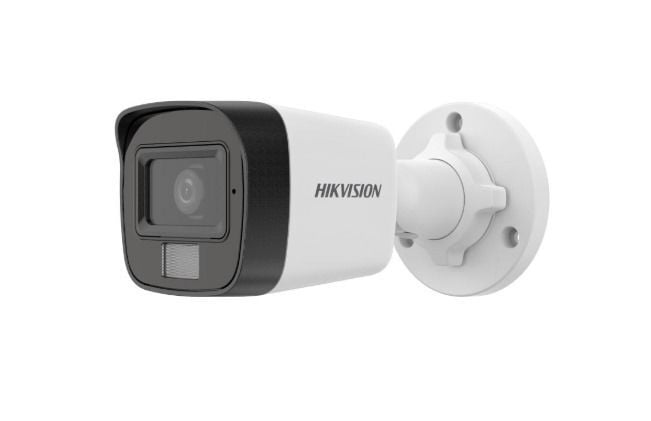

DS-2CD1041G2-LIUF 4MP 2,8mm Lens Smart Hybrid Light Bullet Kamera
DS-2CD1041G2-LIUF
4 MP Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 4 MP resolution
- Support Human Detection
- Efficient H.265+ compression technology
- Smart Hybrid Light: advanced technology with long range coverage
- Built-in microphone for real-time audio security
- -F model supports on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°
4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°
- Lens MountM12
- Iris TypeFixed
- ApertureF2.2
- Depth of Field
2.8 mm: 0.9 m to ∞
4 mm: 1.1 m to ∞
- DORI
- DORI
2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m
4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light Range
IR: up to 20 m
White Light: up to 15 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440),
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio CompressionG.711ulaw/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Network
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
- APIONVIF (Profile S, Profile T),ISAPI,SDK
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- Web BrowserLocal service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Privacy Mask1 programmable polygon privacy mask
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
NA
- Built-in MicrophoneYes,1 built-in microphone
- Reset Key
NA
- Event
- Basic EventMotion detection (support alarm triggering by specified target type (human)), exception
- LinkageSend email, notify surveillance center, trigger capture
- General
- Power
12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 0, max. 6.5 W
- MaterialPlastic
- Dimension
138.8 mm × 60.9 mm × 57.9 mm (5.5 × 2.4\" × 2.3\")"
- Package Dimension163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
- Approx. 175 g (0.4 lb.)
- With Package Weight
Approx. 250 g (0.55 lb.)
- Storage Conditions-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
KC: KN32: 2015, KN35: 2015
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
| Kasa Tipi | : | Bullet |
| Çözünürlük | : | 4 Megapiksel |
| Lens | : | 2,8 mm |
