| Specifications | |
|---|---|

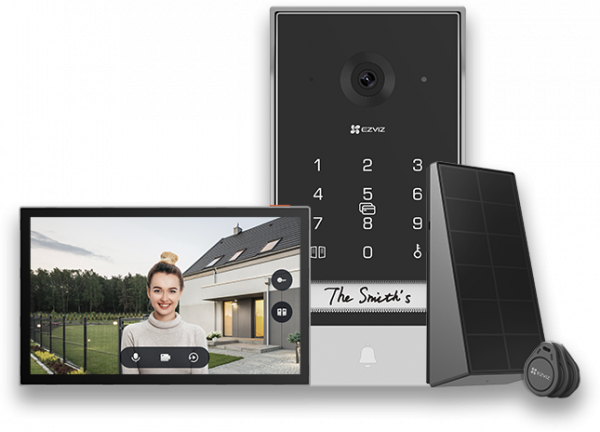

| Model | CS-EP7 |
| Outdoor Doorbell | |
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 2K, 2048 × 1296 |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Connection and Function | |
| Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a dry-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 0.8A, otherwise should do as user manual. |
| Door Open Methods | 1.RFID badge unlock (CPU card × 3 pcs) 2.Password unlock 3.App remote unlock 4.Indoor display unlock |
| Outdoor Doorbell Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Supports 1 button. |
| Name Card | Supports handwritten. 3 cards stickers included (1 sticker already on the intercom panel). |
| Terminal | Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. Two wiring ports to connect the solar panel. |
| Password Keypad | 0-9 10-digial password keyboard; support 5 sets of 6-10 digital passwords; press the keypad to turn on the light, the light can be turn off |
| Network | |
| Wi-Fi Standard | IEEE 802.11 AH |
| Frequency Range | 904 M - 928 M (US), 865 M-867 M (EU) |
| Channel Bandwidth | 8 M (U ), 2 M (EU) |
| Security | 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Wi-Fi HaLow Pairing | AP pairing |
| Max Transmission Distance for Intercom and monitor | Up to 350m in open area; up to 80m in two enclosed walls |
| General | |
| Operation Conditions | -20°C to 60°C , Humidity 95% or less (non-condensing) |
| IP Grade | Waterproof IP65, with shield cover |
| Power Supply | Battery (7.3V), EZVIZ Doorbell Solar Panel |
| Battery Capacity | 2600 mAh 7.3V (5200mAh 3.7V) rechargeable and detachable lithium battery 85 days at the rate of using 3 minutes per day, and open the electric strike plate 10 times |
| Product Dimension | 175 × 86 × 34 mm |
| Interior Display | |
| Info | |
| Display size | 7” touch screen |
| Resolution | 1024 × 600 |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen On / Off Button |
| Terminal | Two wiring ports to connect the power |
| Storage | Supports microSD card (Up to 512 GB) |
| Network Parameters | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Function | |
| Multiple ringtones | Up to 20 ringtones |
| Functions | Live view, playback, two-way talk, video call |
| General | |
| Operation Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
| Size | 180 × 111 × 15 mm |
| Power Supply | 12-24VDC 1A power supply, adaptor (12V 1A included in package) |
| Power Consumption | 8W, Max. 24W |
| Solar Panel | |
| Performance Parameter | |
| Power Voltage | 8.1V max |
| Max. Power Current | 240mA |
| Max. Power | 1.2W |
| Operating Temperature | -20°C to 50°C |
| Product Dimension | 126 × 59 × 44mm |
| IP Grade | IP65 |
| General | |
| Net Weight in Total | 675g |
| Weight with Package | 1865g |
| In the box | |
| In the box | - Monitor |
| - Wall Bracket for Monitor | |
| - Power Adapter for Monitor | |
| - Intercom Panel (Doorbell) with a Weather-proof Shield | |
| - Drill Template for Monitor | |
| - Drill Template for Intercom Panel | |
| - Screwdriver | |
| - Name Card (×3) | |
| - Badges (×3) | |
| - Screw Kit (×2) | |
| - Pin (×1) | |
| - Wires and Wire Connectors | |
| - Battery for Intercome Panel (× 1) | |
| - USB Cable for Battery (× 1) | |
| - Power Supply Jack Connector Cable (× 1) | |
| - Solar Panel (× 1) | |
| - Regulatory Information (×2) | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
