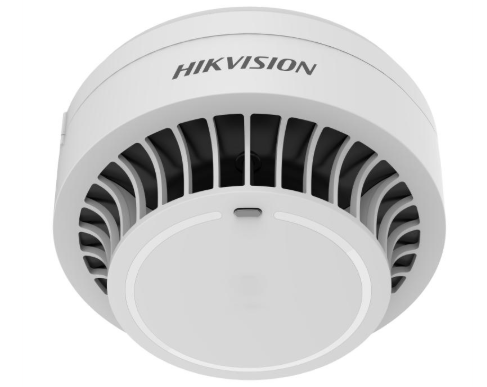

HF-CS1 KONVANSİYONEL YANGIN OPTİK DUMAN DEDEKTÖRÜ
HF-CS1 KONVANSİYONEL YANGIN OPTİK DUMAN DEDEKTÖRÜ
Conventional Smoke Detector (with base)
- The fire alarm confirmation light adopts a light guide column for conduction, visible at 360°.
- Two-wire, convenient for construction wiring.
- Strong anti-interference ability, resistant to dust adhesion, electromagnetic interference, temperature influence, corrosion, and environmental light (light source) interference.
- Strong resistance to humidity and heat, able to adapt to the requirements of different climate environments.
- Key Feature
- Detection TypePhotoelectric
- Bus Parameters
- Wiring requirementsRVS 2*1.5 m㎡ Flame Retardant Wire, Max distance: 500 m
- General
- Main Power SupplyDC 24 V（DC 18 V～DC 28 V）
- Indicator1 Red
- Monitor Current≤ 300μA
- 107g
- Alarm Current≤ 15mA
- WiringTwo-wire, 1 is for L-, 3 is for L+ ; 2 is for R-, 4 is for R+/OUT
- Product Dimensionφ 100.0 mm × H 55.0 mm (with base)
