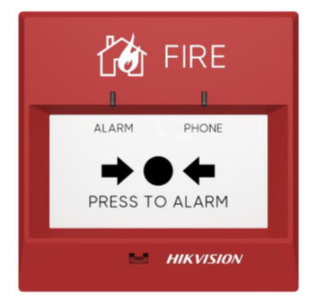

HF-CMP1 KONVANSİYONEL YANGIN ALARM BUTONU
HF-CMP1 KONVANSİYONEL YANGIN ALARM BUTONU
Conventional Manual Call Point (with base)
- Two-wire, convenient for construction wiring.
- Using resettable operating panel, reset by special key.
- Each mounting base contains a reset key, which can be used on demand.
- Bus Parameters
- Wiring requirementsRVS 2*1.5 mm² Flame Retardant Wire, Max distance: 500 m
- General
- 99 g
- Main Power SupplyDC 24 V（DC 18 V～DC 28 V）
- Indicator2 Red, 1 for Fire Alarm
- Wiring1 is for L+, 2 is for L-, 3 is for PHONE+, 4 is for PHONE-
- Reset modeSpecial key manual reset
- Monitor Current≤ 200 μA
- Alarm Current≤ 10 mA
- Product DimensionL 86 mm * W 86 mm * H 34 mm (with base)
- Alarm ModeManually press the starting part
