HF-C104 4 ZONE KONVANSİYONEL YANGIN PANELİ
HF-C104 4 ZONE KONVANSİYONEL YANGIN PANELİ

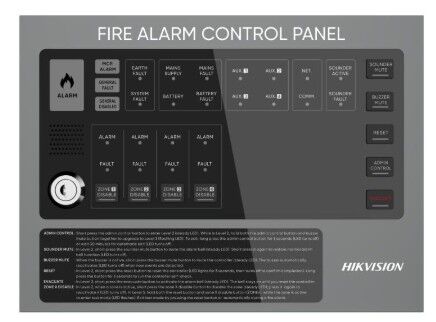

Conventional Fire Alarm Control Panel - 4 zones
- Maximum 4 zone 128 nodes loading capacity.
- Rich interface design (I/O, alarm bell, RS485, etc.)
- Ultra-slim cabinet design with hidden hinges, supporting wall mounting and built-in installation, stylish and attractive.
- Exclusive flame alarm light, paired with an 85dB high-tone buzzer, offering a refreshing audio-visual alert experience.
- Easy of use: The alarm is displayed in English, which is intuitive and clear, and the signal strength is indicated, which is easy to install.
- Supports manual alarm, automatic warning, and multi-level management modes for automatic alarms, easily handling various emergencies.
- The box comes with built-in multi-dimensional debugging functions, making the status visible and maintenance convenient.
- Key Feature
- Communication DistanceRVS 2*1.5 mm² flame retardant wire, max distance: 500m
- Alarm Sound Pressure75dB @1m
- Function
- Local SilenceYes
- ResetYes
- TestYes
- Interface
- Ethernet Interface1 way
- Auxiliary Power Interface4 way
- USB interface1 way
- 24V out1 way, 500mA
- Fire Bell Output2 way, 27.5V/500mA for all
- Fire Alarm Relay Out1 way
- Fault Relay Out1 way
- RS-485 interface1 way
- General
- Dimension (L × W × H)W 300 mm × H 220 mm × D 80 mm
- 4.9 kg (with 2 batteries and package)
- Working Temperature-10 ℃ ~ 55 ℃
- Working Humidity5%～95% (non-condensing)
- Shell MaterialMetal
- Power
Main power: 110 V ~ 240 V / 50 Hz ~ 60 Hz
Backup power: 2200 mA*h / 12 V (2 pcs)
- Rated Capacity4 zones, up to 32 conventional devices in one zone
