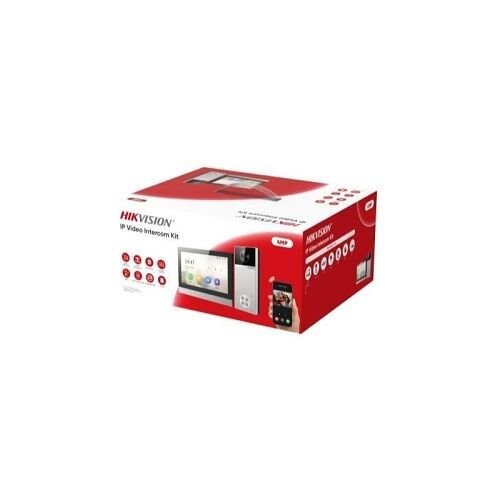

DS-KIS611-S IP Video Interkom Kit
DS-KIS611-S IP Video Interkom Kit
IP Video Intercom Kit
- 4MP higher resolution with 150° viewing angle
- 2 locks control
- Multiple unlocking methods: Card, Bluetooth, Hik-Connect, indoor station
- Video recording and playback via indoor station or door station
- Standard PoE power supply
- Including: DS-KH6350-WTE1 x1, DS-KV6114-MWBE1 x1, 4 port PoE switch x1, DS-KABV6114-RS x1, PSU × 1, 32GB TF card x1, Administrator Card x1, Key fob x 5
- Door station/System parameters
- Operation systemLINUX
- ProcessorEmbeded high performance processor
- Memory/
- RAM512 MB
- ROM4 GB
- Door station/Video parameters
- Supplement lightIR light, up to 3 m
- Resolution
Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P)
Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
- Lens1
- FOVHorizontal: 150°; Vertical: 75°
- Video compression standardH.264; H.265; MJPEG
- Door station/Audio parameters
- Volume adjustmentAdjustable
- Audio Performance50cm 80dB (Maximum: 50cm 83dB)
- Door station/Capacity parameters
- User capacity2000
- Card capacity10000
- Door station/Network parameters
- Network protocolTCP/IP, SIP, RSTP, IPV6, ONVIF
- Wi-Fi2.4GHz
- BluetoothSupported
- Wi-Fi ProtocolIEEE802.11b;IEEE802.11g;IEEE802.11n;IEEE802.11ax
- Wi-Fi TypeWiFi 6
- Door station/Authentication parameters
- Authentication modeCard;Bluetooth;Indoor Station;Hik-Connect
- Card reading frequency13.56 MHz
- Card TypeM1 Card
- Card Reading DistanceM1card:2to2.5cm
- Door station/Application
- Mobile APPHik-Connect
- Motion DetectionSupport
- PlaybackSupport
- Call ElevatorSupport
- Smart FeaturesSound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
- Door station/Device interfaces
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- Exit button1
- Lock control2 relay, Max. 30 VDC 2 A
- RS-4851
- Door contact input1
- Alarm input4(includeExit button and Door contact input)
- Alarm output0
- TAMPER1
- TF cardSupport TF card, up to 128 G
- Supported TF FormatFAT32;exFAT
- Door station/General
- Button1 physical button(s)
- Indicator3
- Power consumption＜ 10 W
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Application environmentOutdoor
- Dimension (W × H × D)164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97")
- Protective levelIP65
- InstallationSurface mounting
- Without package: 273 g (0.61 lb),With package: 431g (0.95 lb)
- Material
Front Shell and Rear Shell Material: Plastic
Viewing Window Panel Material: Glass
- Power supply12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
- LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
- Power Supply OutputMax. 12 VDC, 1 A
- Indoor station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio compression bitrate16~64Kps
- Indoor station/Network parameters
- Wired network1 RJ-45, 10/100 Mbps self-adaptive
- Wireless network2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Network protocolTCP/IP, SIP, RTSP
- Indoor station/Device interfaces
- RS-4851 RS-485 (Half duplex)
- Alarm input8-ch alarm inputs
- Relay output2
- TF cardSupport TF card, up to 128 G
- Indoor station/General
- Power consumption≤ 5 W
- Power supply12 VDC, 1 A,IEEE802.3af, Standard PoE
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (L x W x H)174.99 mm × 113.49 mm × 21 mm (6.89" × 4.47" × 0.83")
