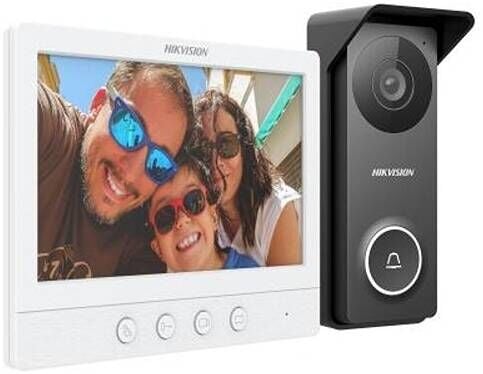

DS-KIS213 4 Telli HD Interkom Kit
DS-KIS213 4 Telli HD Interkom Kit
4 wire HD Kits
- HD TVI video quality
- 7-inch LCD screen
- Plug & Play
- Water and dust resistant (IP65)
- Door station/Video parameters
- Supplement lightIR light, up to 3 m
- ResolutionStream resolution: 1280 x 720@60fps
- FOVHorizontal: 117°, Vertical: 70°, Diagonal: 141°
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone (≤50 cm)
- Audio outputBuilt-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
- Door station/Device interfaces
- Lock control1 relay, max 30 V 1 A
- Debugging port1
- Four-wire1 four-wire interface
- Door station/General
- Button1 physical button(s)
- Power supply12 VDC
- Power consumptionMax. 4 W
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10% to 90%
- Dimensions145 mm × 55 mm × 24 mm (5.71" × 2.17" × 0.94")
- Application environmentOutdoor
- InstallationSurface mounting
- Protective levelIP65, IK08
- MaterialMetal
- Indoor station/Display parameters
- Operation methodPhysical button
- Type7-inch colorful TFT
- Resolution1024 x 600
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone (≤50 cm)
- Audio outputBuilt-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
- Indoor station/Capacity parameters
- Linked indoor extensions capacity2
- Linked doorphone capacity2
- Linked analog camera1
- Indoor station/Device interfaces
- Power supply input12V DC
- Debugging port1
- Four-Wire interface4, 2 for indoor extensions, 2 for doorphones
- DIP switch1 Bit
- BNC1
- Indoor station/General
- Button4 physical buttons
- Power supply12 VDC
- Power consumption≤4 W
- Working temperature-10° C to + 55° C (14° F to 131° F)
- Working humidity10% to 90%
- Dimensions (W × H × D)178 mm x 132 mm x 19 mm (7.01" × 5.20" × 0.75")
- InstallationSurface mounting
- Application environmentIndoor
