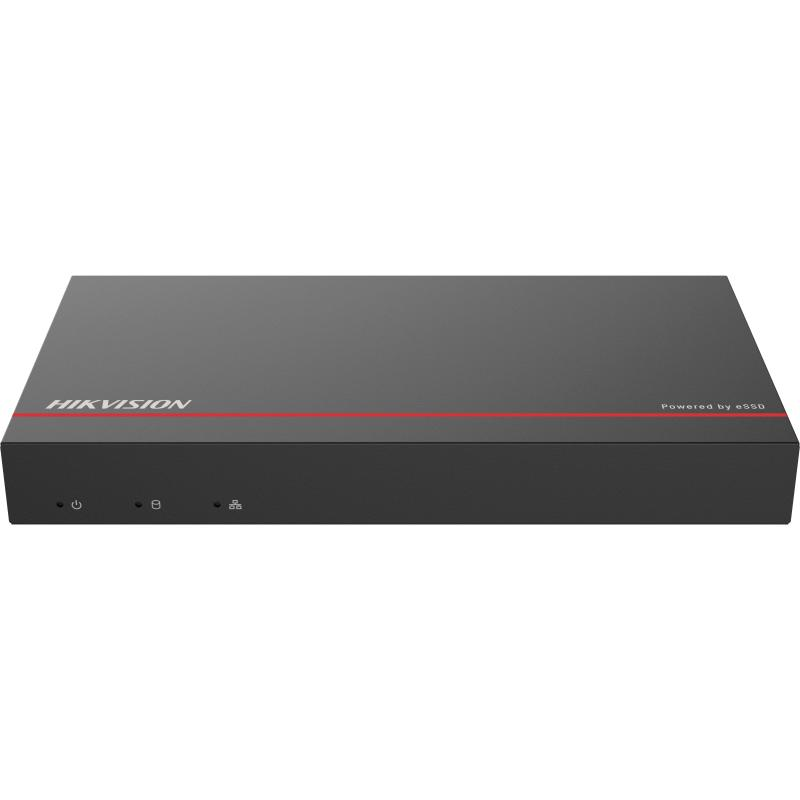

DS-E16HGHI-B (SSD 1TB)

16-ch 1080pLite 1U H.265 eSSD DVR

• Powered by eSSD technology
• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• Scene-adaptive bitrate control video compression
• Up to 1080p Lite@15 fps encoding capability
• Low power consumption
• Audio via coaxial cable

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Recording
• Video CompressionH.265 Pro/H.265
• Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
• Frame Rate

  Main stream:

  1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N)

  Note:

  1080p Lite/720p is 15 fps by default

  Sub-stream:

  For 1080p and 720p stream access: CIF/QVGA@15 fps

• Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
• Stream Type

  Video, Video & Audio

  Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input

  2-ch

  Up to 5 MP resolution

  Support H.265+/H.265 IP cameras

• Analog Video Input

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Audio Input16-ch via coaxial cable
• Audio Output1-ch via HDMI
• Synchronous Playback16-ch

• Network
• Total Bandwidth

  96 Mbps

  Incoming bandwidth: 8 Mbps

• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP™, HTTPS
• Remote Connection128
• Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• Capacity

  Built-in 1024 GB eSSD (960 GB available)

  Note:

  The device can store about 2 weeks videos for 16-ch analog cameras (default parameters), this estimation is for reference only.

• Alarm In/OutN/A
• USB InterfaceRear panel: 2 × USB 2.0

• General
• Power Supply12 VDC, 1 A
• Consumption≤ 9.5 W (with eSSD)
• Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)235 × 146.6 × 46.6 mm (9.25 × 5.77 × 1.83 inch)
• Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
