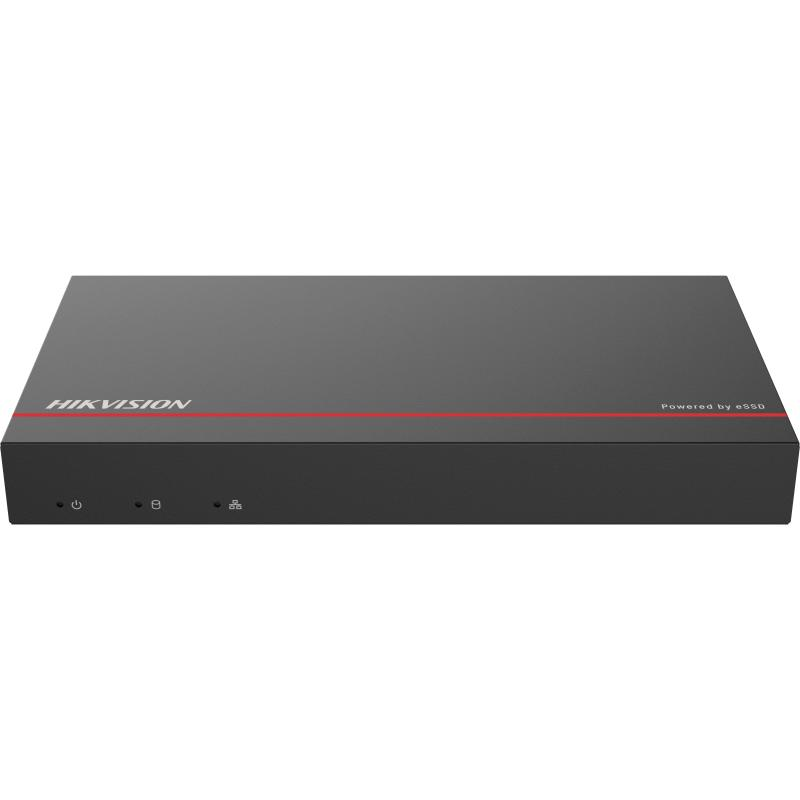

DS-E08NI-Q1/8P (SSD 1TB)

SSD NVR

• Powered by eSSD technology
• Low power consumption
• H.265+/H.265/H.264+/H.264 video compression
• Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 8-ch network camera inputs
• Up to 4-ch 1080p decoding capability

• Video And Audio
• IP Video Input8-ch
• Incoming Bandwidth60 Mbps
• Outgoing Bandwidth60 Mbps
• HDMI Output1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz

• Decoding
• Decoding FormatH.265,Smart265,H.264,Smart264
• Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback4-ch
• Decoding Capability4-ch@1080p (25 fps)
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

• Network
• Remote Connection128-ch
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP,NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤ 58 W
• StandardIEEE 802.3 af/at

• Auxiliary Interface
• Capacity1TB SSD (pre-installed)
• USB InterfaceRear panel: 2 × USB 2.0

• General
• Power Supply48VDC，1.36A
• Consumption≤ 10 W (with SSD)
• Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
• Working Humidity10 to 90 %
• Dimension (W × D × H)225 ×122 ×27 mm (8.9" × 4.8" × 1.1")
• Weight≤ 0.57 kg

• Certification
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
