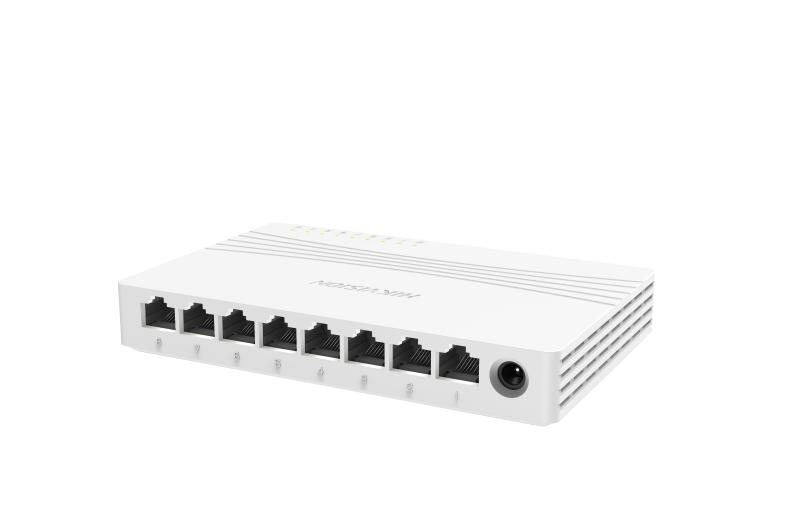

DS-3E0508D-E
DS-3E0508D-E
- 8 x 10/100/1000 Mbps ethernet ports
- Supports ADI/ADIX
- Store-and-forward switching
- Supports MAC address auto-learning and aging
- Simple, compact body design
- Supports desktop and wall-mounting
- Plug & play, easy to use.
- General
- Dimensions (W × H × D)142.00 mm × 90.00 mm × 23.00 mm (5.60'' × 3.54'' × 0.91'')
- ShellABS
- Net Weight0.07 kg (0.15 lb)
- Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
- Operating Humidity10%~90% RH non-condensing
- Storage Temperature–40 °C to 70 °C (–40 °F to 158 °F)
- Storage Humidity5%~90% RH non-condensing
- Power Supply9 V DC, 0.6 A
- Network Parameters
- Ports8
- Port Type10/100/1000 Mbps RJ45 ports
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
- Forwarding ModeStore-and-forward switching
- MAC Address Table4 K
- Switching Capacity16 Gbps
- Packet Forwarding Rate11.904 Mpps
