DS-3E0326P-E/M(B)

DS-3E0326P-E/M(B) uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...

DS-3E0326P-E/M(B)
DS-3E0326P-E/M(B)

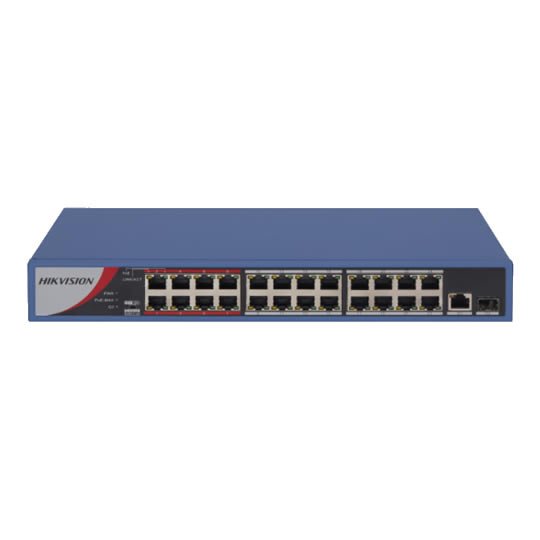

24 Port Yönetilmez PoE Switch
    Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.





      • PoE Power Supply
      • PoE StandardIEEE 802.3af, IEEE 802.3at
      • PoE Power Pin

        Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

        Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

      • PoE PortPorts 1 to 24
      • Max. Port Power30 W
      • PoE Power Pudget230 W
      • Max. Power Consumption250 W
        • Network Parameters
        • Port Number24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
        • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
        • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
        • Forwarding ModeStore-and-forward switching
        • Working ModeStandard mode (default); Extend mode
        • High Priority PortsPorts 1 to 8
        • Ports For Long-Distance TransmissionPorts 17 to 24
        • MAC Address Table4 K
        • Switching Capacity8.8 Gbps
        • Packet Forwarding Rate6.547 Mpps
        • Internal Cache2.75 Mbits
          • General
          • ShellMetal material
          • Gross Weight3.33 kg (7.34 lb)
          • Net Weight2.55 kg (5.6 lb)
          • Dimension (L × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
          • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
          • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
          • Operating Humidity5% to 95% (no condensation)
          • Storage Humidity5% to 95% (no condensation)
          • Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
          • Power Consumption In Idle20 W
            • Approval
            • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
            • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
            • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
