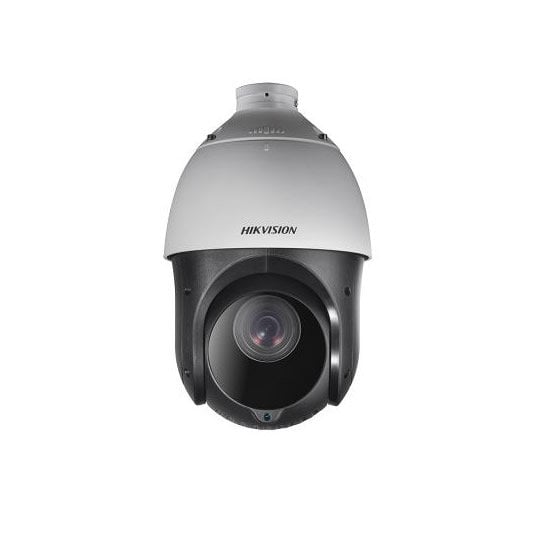

DS-2DE4215IW-DE
DS-2DE4215IW-DE
DS-2DE4215IW-DE PTZ kamera uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...
 |
DS-2DE4215IW-DE
2MP 15x Network IR Speed Dome Kamera
1/2.8" progressive scan CMOS Up to 1920 × 1080 resolution Min. illumination: Color: 0.05 Lux @(F1.6, AGC ON) B/W: 0.01 Lux @(F1.6, AGC ON) 0 Lux with IR 15× optical zoom, 16× digital zoom Digital WDR, 3D DNR, HLC, BLC, Smart IR Up to 100 m IR distance 12 VDC & PoE+ (802.3at, class4) Support H.265+/H.265 video compression |
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8" progressive scan CMOS |
| Effective Pixels: | | | 1920 × 1080 |
| Minimum Illumination: | | | Color: 0.05 Lux @(F1.6, AGC ON) B/W: 0.01 Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance: | | | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC: | | | Auto/Manual |
| WDR: | | | Support |
| Shutter Time: | | | 1/1 s to 1/30,000 s |
| Day& Night: | | | ICR |
| Digital Zoom: | | | 16× |
| Lens | ||
| Focal Length: | | | 5 mm to 75 mm, 15× optical |
| Zoom Speed: | | | Approx. 2.4 s (optical lens, wide-tele) |
| Angle of View: | | | Horizontal field of view: 53.8° to 4.0° (wide-tele) Vertical field of view: 31.9° to 2.3° (wide-tele) Diagonal field of view: 60.4° to 4.6°(wide-tele) |
| Minimum Working Distance: | | | 10 mm to 1500 mm (wide-tele) |
| Aperture Range: | | | F1.6 to F3.5 |
| Pan & Tilt | ||
| Pan Range: | | | 360° endless |
| Pan Speed: | | | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
| Tilt Range: | | | From -15° to 90° (Auto-flip) |
| Tilt Speed: | | | Configurable, from 0.1°/s to 80°/s Preset Speed: 80°/s |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets for each patrol |
| Pattern: | | | 4 pattern scans, record time over 10 minutes for each scan |
| Power loss recovery: | | | Support |
| PTZ Position Display: | | | ON/OFF |
| Freeze Frame: | | | Support |
| Infrared | ||
| IR irradiation distance: | | | Up to 100 m |
| Network | ||
| Main Stream: | | | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1280 × 960, 1280 × 720) |
| Sub Stream: | | | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream: | | | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Compression: | | | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
| Storage: | | | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| General | ||
| Power Consumption: | | | Max.: 18 W (IR light 6 W Max.) |
| Working Temperature/Humidity: | | | Working Temperature: -30°C to 65°C (-22°F to 149°F) Working Humidity: ≤ 90% |
| Dimensions: | | | Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42") |
| Weight (approx.): | | | Approx. 2 kg (4.41 lb) |
