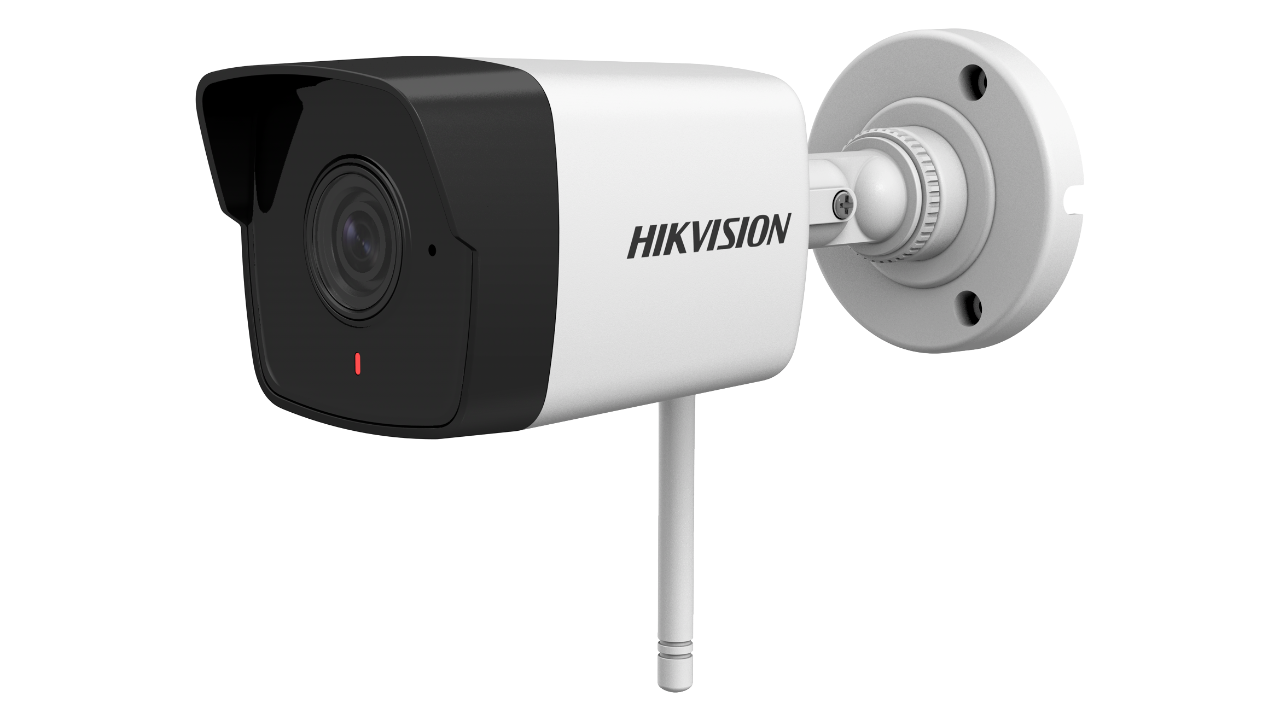

DS-2CV1021G0-IDW1
(Hikvision NVR ile çalışır)

2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging even with strong back lighting due to DWDR technology
• Up to 128 GB SD card slot for storage
• Wi-Fi connection with Hik-Connect directly is not possible
• Water and dust resistant (IP66)

• Image
• Max. Resolution1920 × 1080
• Main Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 720)

  60Hz: 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream

  50Hz: 25 fps (640 × 360)

  60Hz: 30 fps (640 × 360)

• Image EnhancementBLC, HLC, 3D DNR
• Day/Night SwitchDay, night, auto, scheduled
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

• General
• Operating Conditions-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Ø5.5 mm coaxial power plug
• Power Consumption And Current12 VDC, 0.4 A, max. 5 W
• MaterialFront cover: metal, back cover: plastic
• Dimensions

  Camera: 177.6 mm × 67.8 mm × 66.2 mm (7" × 2.7\" × 2.6\")

  With package: 264 mm × 129 mm × 120 mm (10.4 × 5.1\" × 4.7\")"

• Weight

  Camera: approx. 270 g (0.6 lb.)

  With package: approx. 470 g (1 lb.)

• Approval
• ProtectionIngress protection: IP66 (IEC 60529-2013)

• Compression Standard
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264

• H.264+Main stream supports
• H.265+Main stream supports
• H.264 TypeBaseline Profile/Main Profile
• H.265 TypeBaseline Profile
• Video Bit Rate32 Kbps to 8 Mbps
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)

• IR
• IR RangeUp to 30 m
• Wavelength850 nm

• Wi-Fi (-W)
• Wireless StandardsIEEE 802.11b/g/n
• Frequency Range2.4 GHz to 2.4835 GHz
• Transfer Rates

  11b: 11 Mbps

  11g: 54 Mbps

  11n: up to 150 Mbps

• Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
• Channel Bandwidth20 MHz/40 MHz
• Wireless RangeUp to 80 m (The performance varies based on actual environment.)
• Protocols

  802.11b: CCK, DQPSK, DBPSK

  802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
