DS-2CD1023G0-IUF

DS-2CD1023G0-IUF uzman teknik destek hizmeti ve en iyi fiyat garantisi ile DESS Elektronik'te...

 YENİ ÜYELİK - BAYİLİK   TALEP FORMU

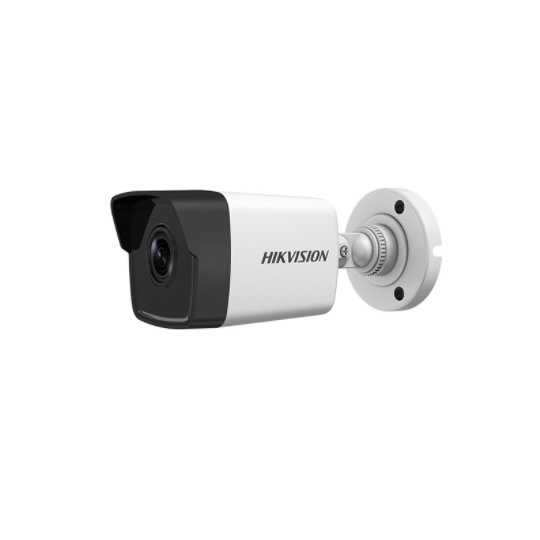

DS-2CD1023G0E-IF 2 MP CMOS Network Bullet Kamera (Dahili Ses)   High quality imaging with 2 MP resolution Efficient H.265+ compression technology Clear imaging even with strong back lighting due to DWDR technology Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Built-in microphone for real-time audio security

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Day &NightIR cut filter
• Wide Dynamic RangeDigital WDR

• Lens
• LensFixed lens, 4 mm
• Auto-IrisNo
• ApertureF2.0
• FocusNo
• FOV2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° ;4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
• Lens MountM12

• Illuminator
• IR RangeUp to 30 m
• Wavelength850 nm

• Video
• Max. Resolution1920 × 1080
• Video CompressionMain stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 8 Mbps

• Smart Feature-Set
• Region Of Interest1 fixed region for main stream and sub-stream

• Image
• Image EnhancementBLC, 3D DNR
• Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night SwitchDay/Night/Auto/Schedule
• Main Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream Max. Frame Rate50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator, and User
• ClientiVMS-4200, Hik-Connect, iVMS-5200
• Alarm TriggerMotion detection, video tampering alarm, illegal login
• Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

• Interface
• Communication Interface1 RJ45 self-adaptive Ethernet port

• General
• Firmware Version5.5.83
• General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
• MaterialFront cover: metal, back cover : plastic
• DimensionsCamera: 67.8 × 66.2 × 177.6 mm (2.7" × 2.6" × 7") ;With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
• Camera: Approx. 270 g (0.6 lb.) ;With package: Approx. 470 g (1 lb.)
• Power Consumption And Current

  12 VDC: 0.4 A, max. 5 W

  PoE: (802.3af，36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W

• Interface ProtectionIngress protection: IP66 (IEC 60529-2013)
