DS-1LN6U-G

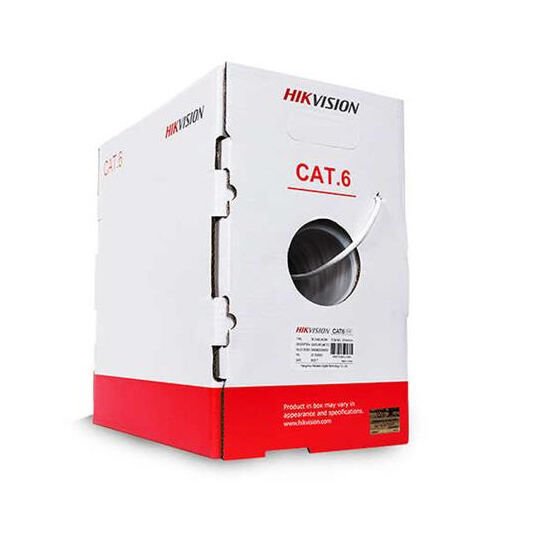

305 m CAT6 UTP Network Cable (Solid Copper, 0.55 mm, Gray)

• Full diameter 305 m CAT6 network cable
• Core diameter: 0.55mm
• Excellent transmission performance using solid copper
• Quality verified by Fluke test
• Guaranteed long PoE transmission distance
• Great PVC flame resistance.
• Accessories
• CategoryCat.6
• Steath PrintingHIKVISION 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
• Reference StandardISO/IEC11801,ANSI/TIA-568-C.2,RoHS 2.0
• Fire ResistanceNo
• ConductorSolid-Bare Copper (99.95%);0.55±0.005 mm，23 AWG
• InsulationHDPE;0.98±0.05 mm
• Rip-CordYes
• SeparatorYes
• Sheath Physical Properties
• Before AgingTensile strength ≥ 13.5 Mpa;Elongation ≥ 150%
• Aging Period100 ℃ × 24h × 10d
• After AgingTensile strength ≥ 12.5Mpa;Elongation ≥ 125%
• Cold Bend-20 ± 2℃ × 4h，8 × cable O.D,no visible cracks
• Electrical Characteristics(20℃)
• 1.0-250.0 MHz Impedance100 ± 15Ω @ ≤ 100MHz；100 ± 25Ω @ 100-250MHz
• 1.0-250.0 Mhz Delay Skew≤ 45 ns/100 m
• DC Resistance≤ 9.38 Ω/100 m
• DC Conductor Resistance Unbalance≤ 5.0 %
• Package Dimension400 mm (W) × 400 mm (H) × 240 mm (D)(15.75″ × 15.75″ × 9.45″)
• 12.3 ± 0.5kg
• Cable Length(305 ±1.5) m
• Ambient Temperature-20 ℃ to 75 ℃ (-4℉ to 167℉)
• Operating Voltage60 V
• Sheath
• Thickness0.5±0.10 mm
• MaterialPVC
• ColorGrey
• Diameter6.00±0.30 mm
